Open Rectangular High Bay 400W
Series Number: EHB-OD
Lamp Life Rating: 100,000 hours Energy Savings: 60% over HID sources Lumen Maintenance: 70% over 100,000 hours IP Rating: IP20 Light Output: 5000 Kelvin, 86-90 CRI Applications: Warehouses, factories, showrooms, gymnasiums Warranty: 10 years (see terms and conditions)  Or call toll-free 888-383-7578 |
- Lamp Specifications:
Wattage Lumens CRI CCT(Kelvin) Rated Life 400 watts 33,600 86-90 5000 100,000 hours
Ballast Specifications:Input Wattage Input Voltage Input Current Input Freq. Power Factor Operating Temp. THD 440 120-277v / 480v 3.54-1.60A / 0.92A 50/60 Hz >.95 -20 to 130 °F <10% - Powder coated aluminum body with anodized aluminum reflector
- Open structure for good ventilation and prolonged life
- Die cast aluminum ballast casing with corrosion-resistant white powder coat finish
- Can be suspended by chains, cables or pendant mounted
- Electronic ballast with high power factor, flicker free instant re-strike
Download Cut Sheet
Installation Instructions
Download IES Photometrics
Download Photometric Report
EverLast® Interactive Layout Calculator - Click Here
Installation Photo Gallery

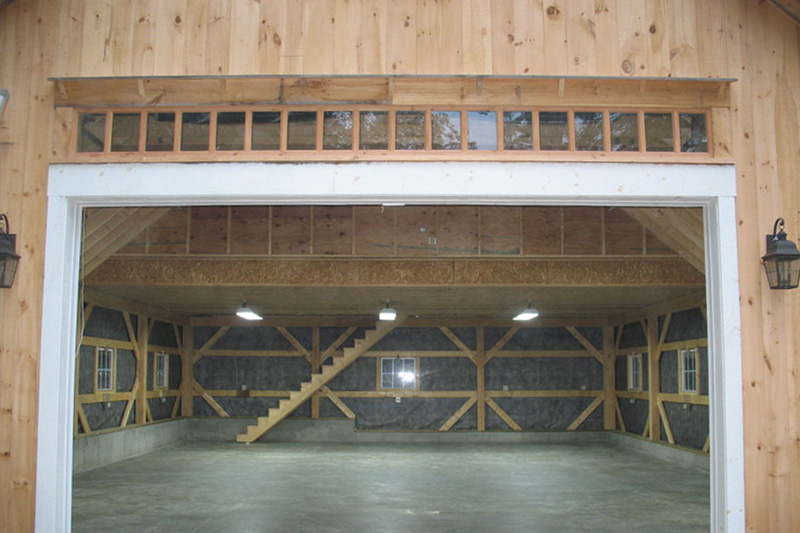

BMW Garage, Worcester, MA
