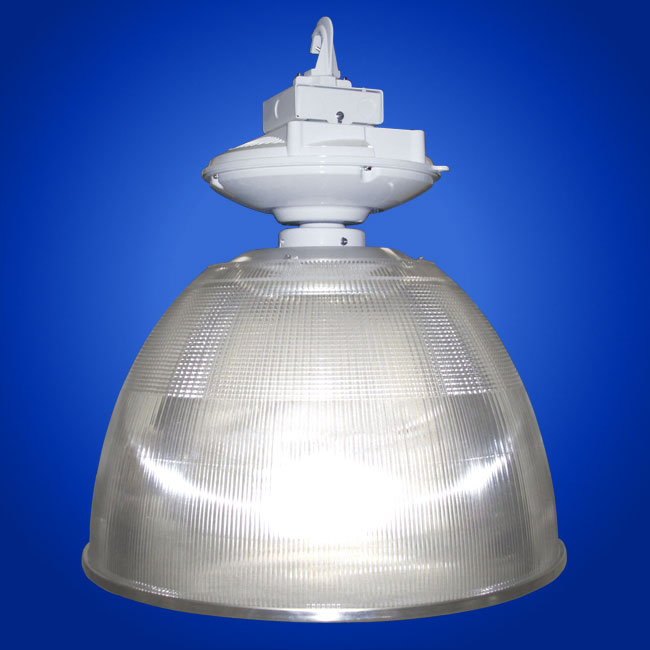

Huron Acrylic High Bay
Series Number: EHBUS-CC
Lamp Life Rating: 100,000 hours
Energy Savings: 60% over HID sources
Lumen Maintenance: 70% over 100,000 hours
IP Rating: IP43
Light Output: 5000 Kelvin, 82-85 CRI
Applications: Warehouses, factories, showrooms, gymnasiums
Warranty: 10 year warranty (see terms and conditions)
|
New! EverLast® Electrodeless Fluorescent Technology
 Featured Install: Model A Fitness,LA Boxing
 Download Cut Sheet
 Installation Instructions
 |
Choose IES file
|
|
 |
Choose Photometric Report
|
|
 EverLast® Interactive Layout Calculator - Click Here
 Installation Photo Gallery
Or call toll-free 888-383-7578
|
|
Lamp Specifications:
| Wattage |
Lumens |
CRI |
CCT(Kelvin) |
Rated Life |
| 100 watts |
8,400 |
82-85 |
5000 |
100,000 hours |
| 120 watts |
10,100 |
82-85 |
5000 |
100,000 hours |
| 150 watts |
12,600 |
82-85 |
5000 |
100,000 hours |
| 200 watts |
16,800 |
82-85 |
5000 |
100,000 hours |
| 250 watts |
21,000 |
86-90 |
5000 |
100,000 hours |
| 300 watts |
25,200 |
86-90 |
5000 |
100,000 hours |
|
|
Ballast Specifications:
| Input Wattage |
Input Voltage |
Input Current |
Input Freq. |
Power Factor |
Operating Temp. |
THD |
| 111 |
120-277v / 480v |
0.93-0.42A / 0.22A |
50/60 Hz |
>.95 |
-20 to 130 °F |
<10% |
| 134 |
120-277v / 480v |
1.05-0.46A / 0.28A |
50/60 Hz |
>.95 |
-20 to 130 °F |
<10% |
| 165 |
120-277v / 480v |
1.35-0.61A / 0.35A |
50/60 Hz |
>.95 |
-20 to 130 °F |
<10% |
| 215 |
120-277v / 480v |
1.77-0.80A / 0.45A |
50/60 Hz |
>.95 |
-20 to 130 °F |
<10% |
| 265 |
120-277v / 480v |
2.21-1.00A / 0.56A |
50/60 Hz |
>.95 |
-20 to 130 °F |
<10% |
| 320 |
120-277v / 480v |
2.65-1.20A / 0.62A |
50/60 Hz |
>.95 |
-20 to 130 °F |
<10% |
|
Ordering Information:
Example: (EHBUS-CC-150W-120-50-CA-L7-X-VD)
|
| Wattage |
|
Voltage |
|
Color Temp. |
|
Cord Options |
|
Wire Guard |
|
Dimming |
| |
|
|
|
|
|
|
|
|
|
|
| | |
|
| |
|
| |
|
| |
|
| |
|
| |
| 100W - 100 watts |
|
120 - 120 -277V |
|
50 - 5000K |
|
X = None |
|
X = None |
|
X = None |
| 120W - 120 watts |
|
347 - 347V* |
|
40 - 4000K* |
|
3P - 120 3 Prong Plug* |
|
WG - Wire Guard* |
|
VD - Variable Dimming* |
| 150W - 150 watts |
|
480 - 480V* |
|
|
|
L5 - NEMA L5-15 120V* |
|
|
|
|
| 200W - 200 watts |
|
|
|
|
|
L6 - NEMA L6-15 250V* |
|
|
|
|
| 250W - 250 watts |
|
|
|
|
|
L7 - NEMA L7-15 277V* |
|
|
|
|
| 300W - 300 watts |
|
|
|
|
|
|
|
|
|
|
Items In Bold Come standard
Items In Grey * Represent Upgrade Options Available Upon Request
|
|
| |
| Physical Specifications: |
- Premium grade acrylic reflector with <2% Haze
- Conical drop lens lifts the main beam and breaks up lamp image
- Stainless steel roll-form clamp band
- US Patented optics improve performance by 20% over imported knock-offs
- Die cast aluminum ballast casing with corrosion-resistant white powder coat finish
- Electronic ballast with high power factor, flicker free instant re-strike
- Excellent vibration & shock resistance
|
|
|
