BioLume™ Garage Fixture

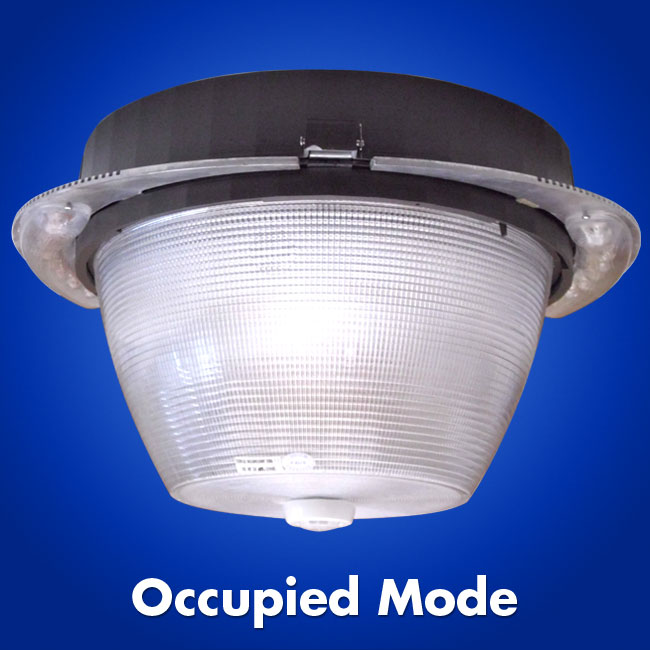

 Mouseover to view BioLume™ Mode
 Manufactured in U.S.A.Per Buy American Act 41U.S.C.
Series Number: BLGFUS-EC
Lamp Life Rating: 100,000/50,000 hours
Energy Savings: 60%-80% over HPS and HID sources
Lumen Maintenance: 70% over 100,000 hours
BioLume® Hybrid Bi-Level dims for increased energy savings
IP Rating: IP65
Induction Light Output: 5000 Kelvin, 82-85 CRI
LED Light Output: Amber Standard, 3000K, 5000K available*
Voltage: 120-277 Standard, 480V option available*
Applications: Parking garages, gas stations, schools, canopies
Warranty: 10/5 year warranty ( see terms and conditions)
|
An energy efficient Induction and LED lighting source fixture coupled with occupancy sensor controls that creates a Dark-Sky and Animal Friendly environment.
 Press Release: New BioLume Garage Fixture
 Download Cut Sheet
 |
Choose IES file
|
|
 EverLast® Interactive Layout Calculator - Click Here
 Installation Photo Gallery
Available 3rd Quarter of 2011!
Or call toll-free 888-383-7578
|
|
Induction Lamp Specifications:
| Wattage |
Lumens |
CRI |
CCT(Kelvin) |
Rated Life |
| 40 watts |
3,350 |
82-85 |
5000 |
100,000 hours |
| 55 watts |
4,650 |
82-85 |
5000 |
100,000 hours |
| 70 watts |
5,900 |
82-85 |
5000 |
100,000 hours |
| 100 watts |
8,400 |
82-85 |
5000 |
100,000 hours |
|
|
Induction Ballast Specifications:
| Input Wattage |
Input Voltage |
Input Current |
Input Freq. |
Power Factor |
Ambient Temp. |
THD |
| 44 |
120-277v / 480v |
0.37-0.16A |
50/60 Hz |
>.95 |
-40 to 130 °F |
<10% |
| 61 |
120-277v / 480v |
0.50-0.21A |
50/60 Hz |
>.95 |
-40 to 130 °F |
<10% |
| 78 |
120-277v / 480v |
0.63-0.29A |
50/60 Hz |
>.95 |
-40 to 130 °F |
<10% |
| 111 |
120-277v / 480v |
0.70-0.32A |
50/60 Hz |
>.95 |
-40 to 130 °F |
<10% |
|
|
LED Module Specifications:
| Wattage |
Lumens |
Input Voltage |
Output Voltage |
CCT (Kelvin) |
Ambient Temp |
Rated Life |
Power Factor |
| 20 |
865 |
120/277V |
2.8-28V |
Amber, 3000*, 5000* |
-40 to 130 °F |
50,000 hours |
>0.90 |
| 40 |
1,733 |
120/277V |
2.8-28V |
Amber, 3000*, 5000* |
-40 to 130 °F |
50,000 hours |
>0.90 |
|
Ordering Information:
Example: (BLGFUS-EC-70W-120-50-AM-20W)
|
| Wattage |
|
Voltage |
|
Color Temp. |
|
LED Color Temp |
|
LED Wattage |
| |
|
|
|
|
|
|
|
|
| | |
|
| |
|
| |
|
| |
|
| |
| 40W - 40 watts |
|
120 - 120 -277V |
|
50 - 5000K |
|
AM - Amber |
|
20W - 20 watts |
| 55W - 55 watts |
|
347 - 347V* |
|
40 - 4000K* |
|
50 - 5000K* |
|
40W - 40W* |
| 70W - 70 watts |
|
480 - 480V* |
|
|
|
|
|
|
| 100W - 100 watts |
|
|
|
|
|
|
|
|
Items In Bold Come standard
Items In Grey * Represent Upgrade Options Available Upon Request
|
|
| |
| Physical Specifications: |
- Engineered optics provide uniform distribution and decreased levels of driver / pedestrian glare
- Heat management system including heatsink technology and isolated ballast compartment
- light weight and compact structure for easy installation and maintenance
- Die cast aluminum housing with powder coat finish for corrosion resistance
- BioLume™ Amber LED lights are Dark-Sky and Animal Friendly
- Amber light prevents the altering of circadian rythm for certain species in surrounding wildlife
- Not intended for sea turtle mating habitats
|
|
|
