    GUARDIAN COMPACT SERIES

    COMPACT LED WALL PACK

    EverLast LED outdoor wall packs are the perfect fit for both industrial and commercial lighting applications. With the advanced LED technology, the lumen output significantly outperforms the competition while increasing your building perimeters and parking structure’s security, lowering your energy consumption and reducing maintenance costs. Boasting advanced distribution and options, EverLast’s LED outdoor wall packs will exceed your expectations.

    • Limited Warranty: 10 Years
    • Wattage: 30w – 80w
    • Color Temperature: 4000K, 5000K
    • Lumen Output: 3,000LM – 8,700LM
    • Listings: DLC, ETL

    Features

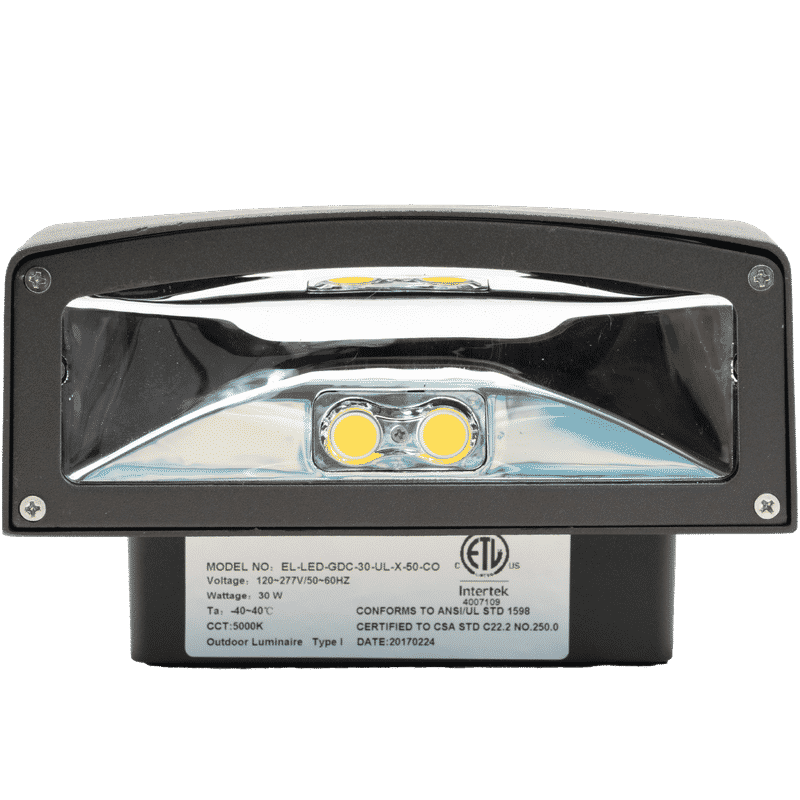

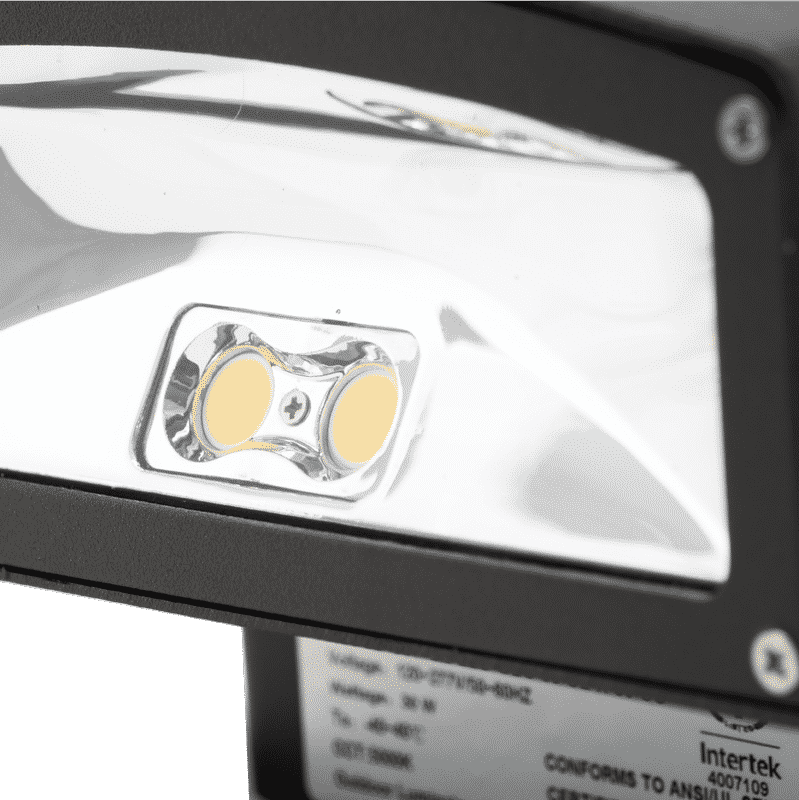

    The EverLast Guardian Compact LED wall pack fixture provides substantial light from a small package. Utilizing chip on board (COB) technology, multiple LED chips are bonded directly to the substrate to form a single module. This packaging takes less space and obtains the full potential of the LED chips. Simple installation into new or existing applications due to its small package, this LED wall pack fixture offers a warm, consistent lighting solution for any outdoor, vertical space.
    • Lumen Output:
    • 30W: 3,000 Lumens @5000k
    • 50W: 5,400 Lumens @5000k
    • 80W: 8,700 Lumens @5000k

    (Lumen output varies based upon kelvin ratings)

    • Color Rendering Index: 75+ CRI
    • DLC: Standard
    • UL: 1598
    • Mechanical Materials: High pressure, diecast aluminum housing with bronze, anti-static powder coat finish for improved corrosion resistance & heat transfer
    • Finish: Bronze
    • Rating: IP65 per ANSI C126.25-2009
    • Temperature Rating: -40ºF to 104ºF (-40°C to 40°C)
    • Mounting Options:
    • Wall or pole mount – adjustable yoke mount included.
    Fixture
    Wattage
    Voltage
    Dimming
    Color Temperature
    Cutoff
    EL-LED-GDC
    30
    50
    80
    UL 120-277V AC
    X None
    D Dimming (0-10V)
    40 4000K 80+ CRI
    50 5000K 80+ CRI
    CO Standard Cutoff

    Downloads

    EverLast has resources that are built for you.

    Cut Sheets

    Download 30w Cutsheet

    Download 50w Cutsheet

    Download 80w Cutsheet

    Installation Instructions

    Download Installation Instructions

    IES Files

    Download IES File Package

    Accessories & Options

    • SENSOR
      BTN1 120V BUTTON PHOTOCELL
      BTN2 208-277V BUTTON PHOTOCELL
