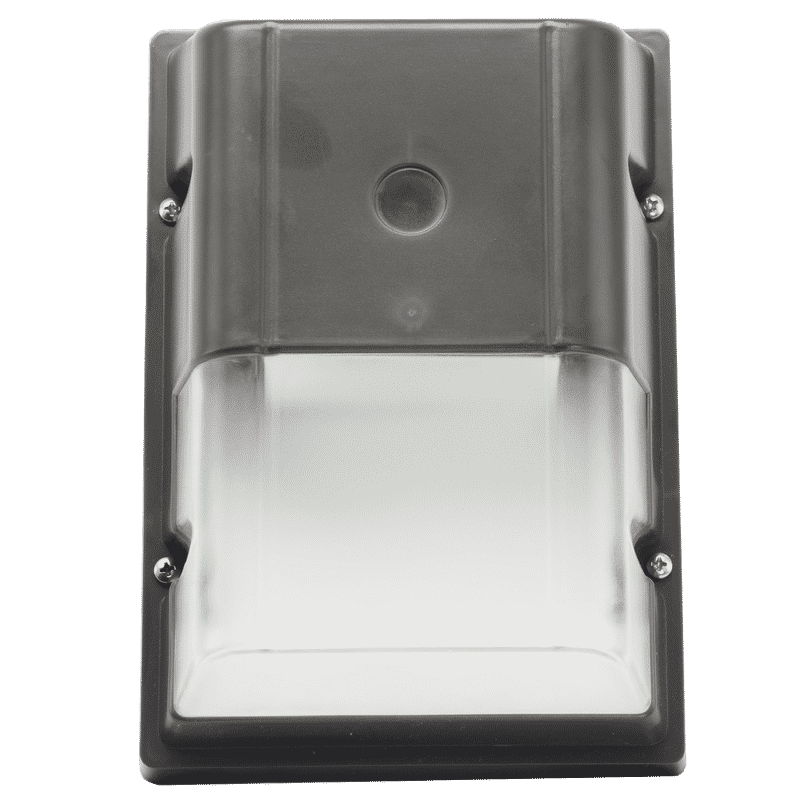

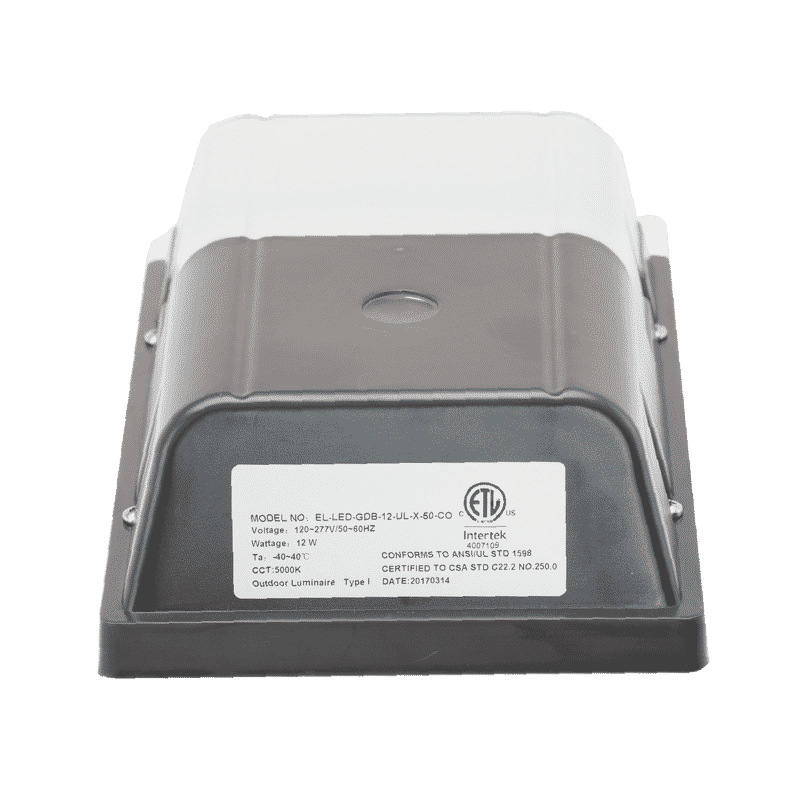

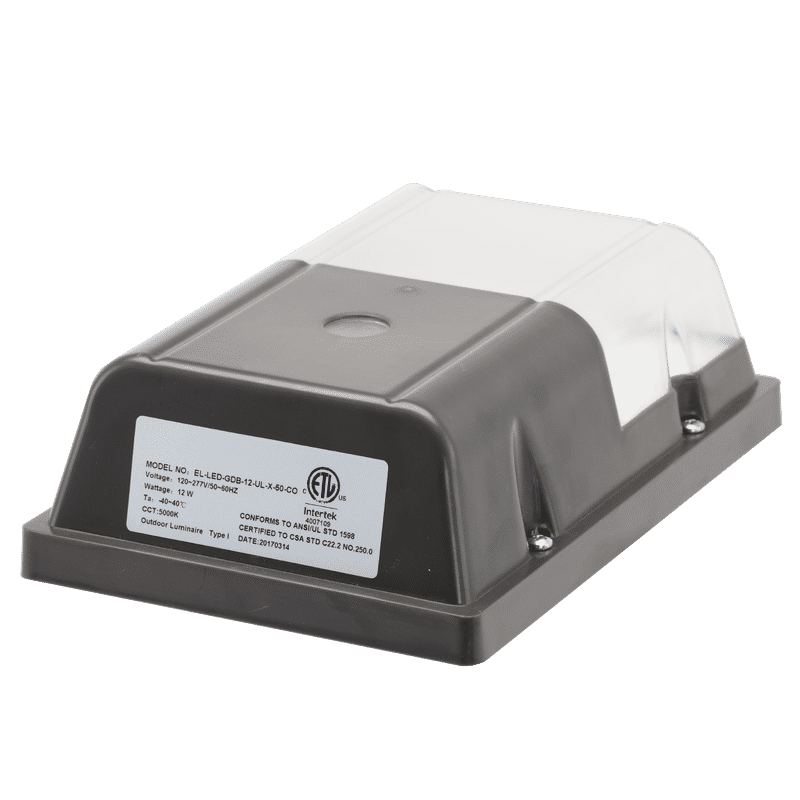

GUARDIAN BANTAM SERIES

LED WALL PACK

EverLast LED outdoor wall packs are the perfect fit for both industrial and commercial lighting applications. With the advanced LED technology, the lumen output significantly outperforms the competition while increasing your building perimeters and parking structure’s security, lowering your energy consumption and reducing maintenance costs. Boasting advanced distribution and options, EverLast’s LED outdoor wall packs will exceed your expectations.

  • Limited Warranty: 10 Years
  • Wattage: 20w
  • Color Temperature: 4000K, 5000K
  • Lumen Output: 2,140LM
  • Listings: DLC, ETL

FEATURES

The EverLast Guardian Bantam LED wall pack fixture provides substantial light from a small package. Utilizing chip on board (COB) technology, multiple LED chips are bonded directly to the substrate to form a single module. This packaging takes less space and obtains the full potential of the LED chips. Simple installation into new or existing applications due to its small package, this LED wall pack fixture offers a warm, consistent lighting solution for any outdoor, vertical space.

  • Lumen Output:
  • 20W: 2,140 Lumens @5000k

(Lumen output varies based upon kelvin ratings)

  • Color Rendering Index: 80 CRI
  • DLC: Standard
  • ETL: To UL 1598
  • Mechanical Materials: High pressure, die-cast aluminum housing with bronze, anti-static powder coat finish for improved corrosion resistance & heat transfer
  • Finish: Bronze
  • Rating: IP65
  • Temperature Rating: -40ºF to 104ºF (-40°C to 40°C)
  • Mounting Options:
  • Designed for simple wall mount in new and retrofit applications
Fixture
Wattage
Voltage
Dimming
Color Temperature
Cutoff
EL-LED-GDB
20
UL 120-277V AC
X None
D Dimming (0-10V)
40 4000K 80+ CRI
50 5000K 80+ CRI
CO Standard Cutoff

Downloads

EverLast has resources that are built for you.

Accessories & Options

  • SENSOR
    BTN1 120V BUTTON PHOTOCELL
    BTN2 208-277V BUTTON PHOTOCELL
