LEGEND SERIES

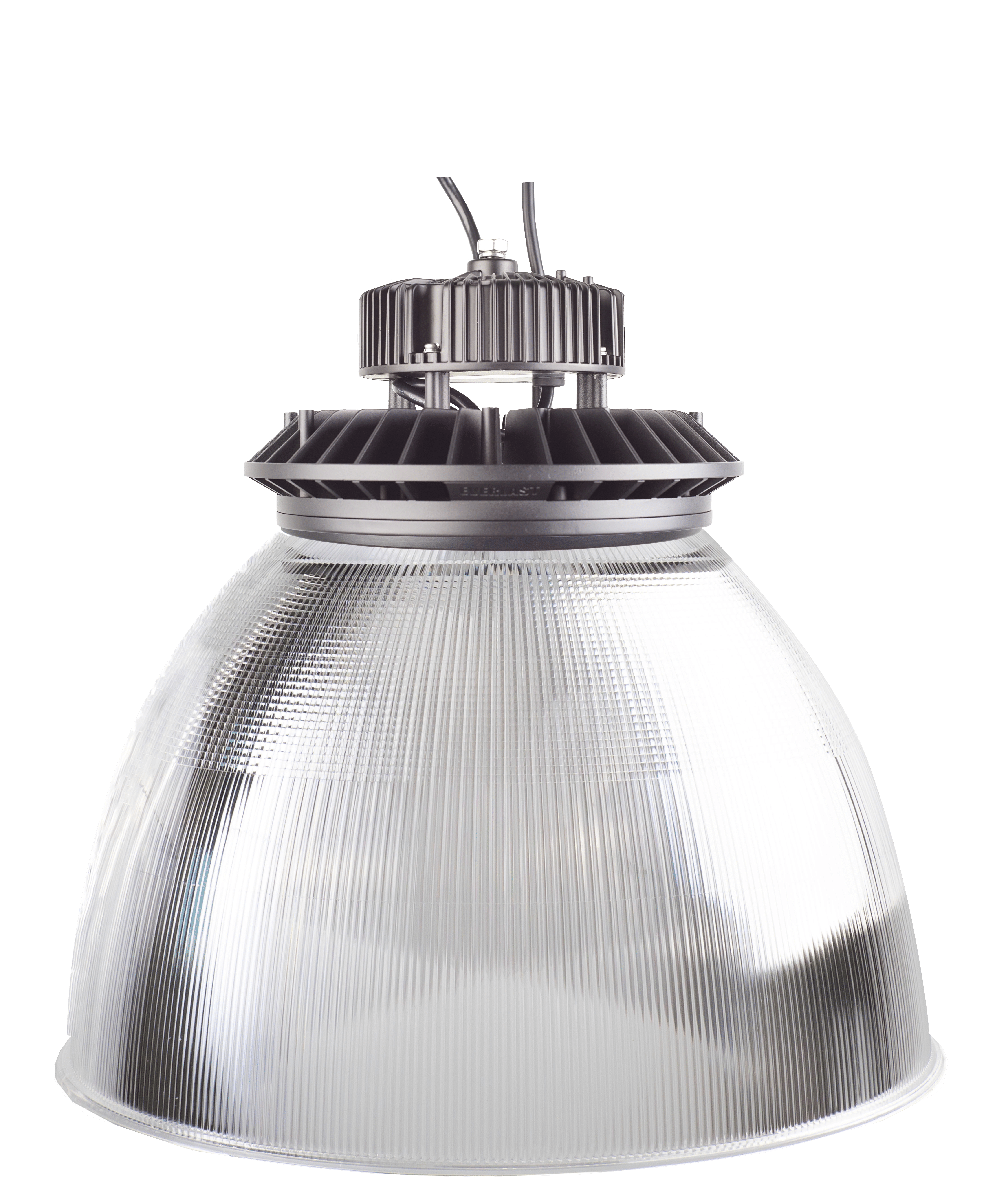

HL17B LED HIGH-BAY


EverLast Lighting provides its end users more than just a standard high/low bay LED fixture. Designed in-house and customized to your application’s exact needs. With its numerous optional accessories, and delivering an industry-leading lumen per watt efficiency, the EverLast circular high/low bay is a truly “built for you” high bay.

  • Limited Warranty: 10 Years
  • Wattage: 100w – 240w
  • Efficacy: up to 170+ LPW
  • Lumen Output: 17,000LM – 39,600LM

Features

The HL17B with its nearly endless customization options and reputation for reliability make it the right choice for your space. Featuring EverLast’s custom-designed and branded circular form factor, the HL17B provides the ideal aesthetic for nearly any application. A combination of mid-power LEDs in a high-density configuration, coupled with an aluminum heatsink for optimum thermal management ensures the HL17B performs at peak output and efficiency.

  • Lumen Output:
  • 100W: 17,000 Lumens @5000k
  • 150W: 25,500 Lumens @5000k
  • 200W: 34,000 Lumens @5000k
  • 240W: 39,600 Lumens @5000k

(Lumen output varies based upon kelvin ratings)

  • Driver: Moons (120 – 277V AC) Dimming: 1-10V
  • Driver: Meanwell (277 – 480V AC) Dimming: 0-10V
  • Emitter: Seoul Semiconductor LED Chips
  • Ingress Protection: IP65 Rated
  • Temperature Rating: -22ºF / 122ºF
  • Lumen Maintenance: L70 157,000 Hours
  • Color Rendering Index: 80 CRI
  • DLC: Premium
  • UL: 1598
  • Mechanical Materials: Die Cast Aluminum Heat Sink & Driver Housing
  • Finish: Black Powdercoat Finish (other finishes available)
  • Standard Accessories:
  • 1-10V Dimming / 10V PWM / or Resistance
  • 0 – 10V Dimming (277- 480V AC)
  • 32” Safety Cable
  • Stainless Steel Hook
  • 10 Year Limited Warranty
Fixture
Wattage
Voltage
Color Temperature
Beam Angle
EL-HL17B-LG
100
150
200
240
L 120-277V AC
UH
277-480V AC
30 3000K
40 4000K
50 5000K
D DIMMING

Accessories & Options

  • WATTAGE (LUMEN) OPTIONS
    100W (17,000LM)
    150W (25,500LM)
    200W (34,000LM)
    240W (39,600LM)

  • VOLTAGE OPTIONS
    120-277V AC / 277-480V AC

  • COLOR TEMPERATURE OPTIONS
    5000K, 4000K, & 3000K

  • CRI
    80

  • HOUSING MATERIAL
    DIECAST ALUMINUM DRIVER & HEAT SINK

  • OPERATING TEMPERATURE
    -22º TO 122ºF (-30º TO 50ºC)

  • LENS
    120º FLAT, GLASS LENS
    120º FLAT, POLYCARBONATE LENS
    POLYCARBONATE BUBBLE LENS
    POLYCARBONATE UPLIGHT CONE

  • MOUNT OPTIONS
    EYELET, HOOK, OR NPT

  • CORD OPTIONS
    9′ WHITE 120V STANDARD PLUG
    9′ WHITE 120V TWIST LOCK PLUG
    9′ WHITE 240V TWIST LOCK PLUG
    9′ WHITE 277V TWIST LOCK PLUG
    9′ BLACK 120V STANDARD PLUG
    9′ BLACK 120V TWIST LOCK PLUG
    9′ BLACK 240V TWIST LOCK PLUG
    9′ BLACK 277V TWIST LOCK PLUG
    9′ BLACK NO PLUG
    9′ FLEXIBLE CONDUIT LUMINARY CABLE
    6′ FLEXIBLE CONDUIT LUMINARY CABLE
    6′ FLEXIBLE CONDUIT NO PLUG


  • SENSOR OPTIONS
    1-10V DIMMING, ON / OFF, BILEVEL, & DAYLIGHT HARVESTING


  • REFLECTOR OPTIONS
    ACRYLIC 16″
    ACRYLIC 22″
    ACRYLIC FROST SHORT 22″
    ACRYLIC SHORT 22″
    ALUMINUM 22″
    POLYCARBONATE 16″
    POLYCARBONATE 22″
    POLYCARBONATE WHITE 16″
    RETAILER TRIPLE-OPTIC 16″ ASSEMBLY


  • WARRANTY
    10-YEAR LIMITED
